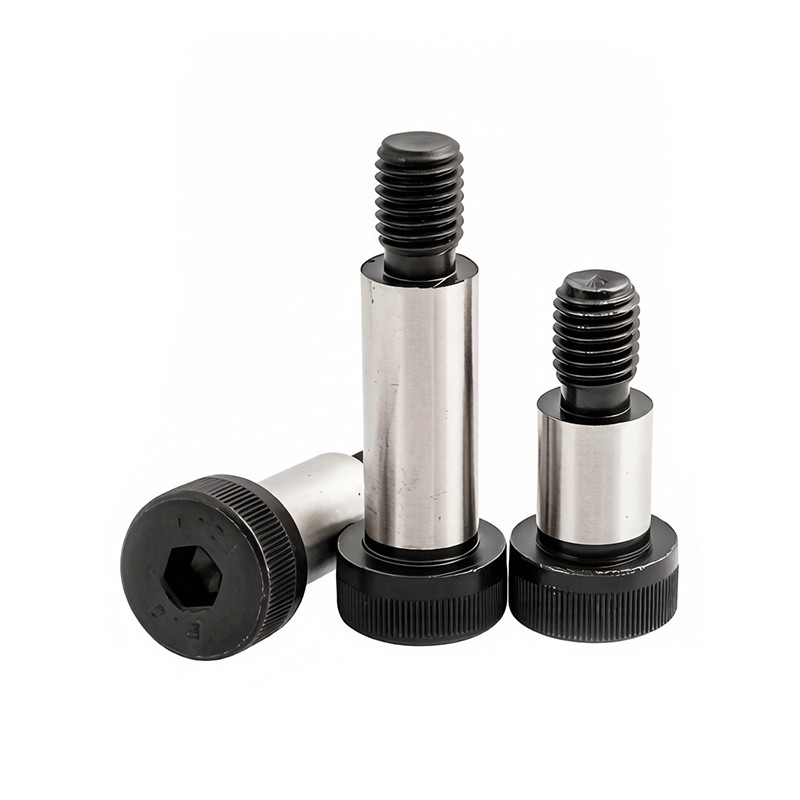

Stripper Bolt

Stripper Bolt

We take a φ10 h7 size as an example. The actual diameter is 10.000 to 9.985 mm. When it fits with a linear bearing or bushing, the gap is very even. Tolerance is h6 or h7 level. That is ±0.005 mm to ±0.015 mm. Surface roughness is Ra≤0.8 μm. Thread precision is 6g.

Send Inquiry
Description

Get Precision Positioning with Our Stripper Bolt



Do you make molds or automation equipment? You need a part that works as both a screw and a locating pin. Our Stripper Bolt is made for precision positioning and stopping. It is also called a shoulder bolt or puller bolt. The smooth shank works as a rotation shaft or a locating pin. The thread part does the fixing. We are a Shanghai factory. We have worked for 20 years.



Check Our Tolerance Data and Strength Grades



We take a φ10 h7 size as an example. The actual diameter is 10.000 to 9.985 mm. When it fits with a linear bearing or bushing, the gap is very even. Tolerance is h6 or h7 level. That is ±0.005 mm to ±0.015 mm. Surface roughness is Ra≤0.8 μm. Thread precision is 6g. The concentricity between thread and shank is ≤0.05 mm. The size range is M4 to M20. We offer stainless steel SUS304 or SUS440C and carbon steel SCM435 or 40Cr. Carbon steel grade is 10.9 or 12.9. Tensile strength is ≥1000-1200 MPa. The shank is precision ground. The head bearing surface has a verticality ≤0.05 mm to the shank axis. When you tighten the bolt, the shank stays perpendicular to the mounting surface. Surface finish includes black oxide, cleaning, or zinc plating.



Parameter

Standard / Value

Shank Tolerance (φ10 h7)

10.000 - 9.985 mm

Concentricity (Thread to Shank)

≤ 0.05 mm

Surface Roughness

Ra ≤ 0.8 μm

Fatigue Life (12.9 grade)

≥ 5,000,000 cycles (ISO 3800)

20260408200383



Why Our Equipment and Testing Give You Quality

We have thread rollers, automatic lathes, CNC lathes, and cold heading machines. We also have a full automatic packing machine. We have salt spray testers, 2D projectors, hardness testers, and optical sorters. We check every batch. The shank surface hardness is ≥HRC 38 for carbon steel after quenching. It has good wear resistance. We accept third-party inspections. We can do a 100% full check before packing. You can trust our stripper bolts for your mold and automation work.

The entire product line is fully customizable.
