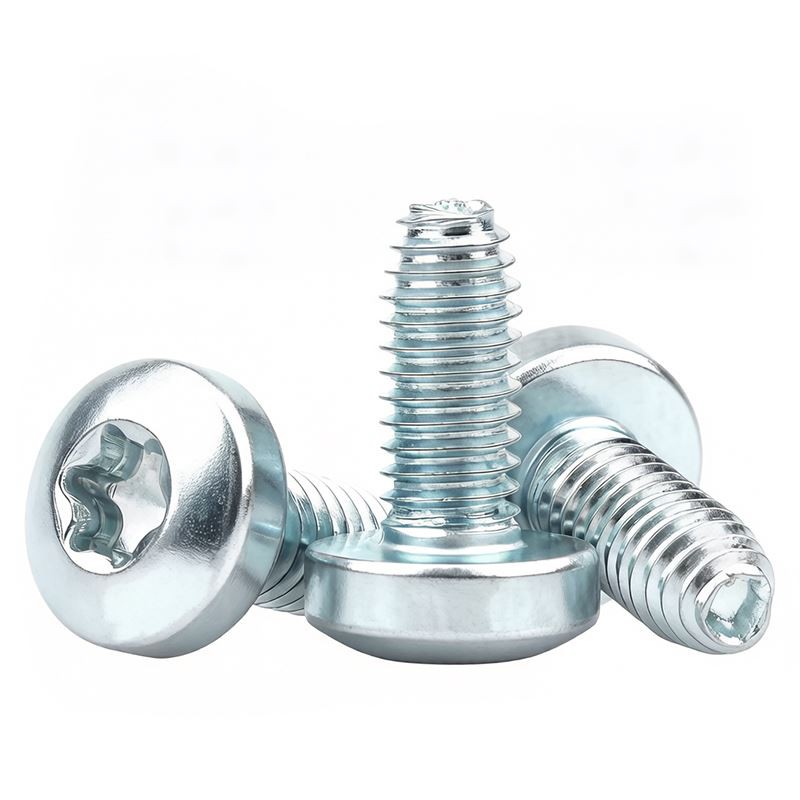

Torch Slot Self-tapping Screws
We take an M5×20 trilobular screw into 2 mm thick SPCC steel as an example. The pre-drilled hole is φ4.5 mm. The driving torque is only 1.5-2.5 N·m. This is 20-30% lower than a regular trilobular screw. The stripping torque is ≥1.0 N·m. The connection is reliable.
Tap Easily with Our Torx Self-tapping Screws
Do you need to make threads in plastic or thin metal? Regular self-tapping screws are hard to drive. They slip easily. Our Torch Slot Self-tapping Screws solve this problem. They combine the high torque of a Torx slot with the low stress of a trilobular shape. They drive smoothly and stay tight. We are a Shanghai factory. We have supplied fasteners for 20 years.
Check Our Driving Torque and Surface Hardness
We take an M5×20 trilobular screw into 2 mm thick SPCC steel as an example. The pre-drilled hole is φ4.5 mm. The driving torque is only 1.5-2.5 N·m. This is 20-30% lower than a regular trilobular screw. The stripping torque is ≥1.0 N·m. The connection is reliable. The size range is M4 to M20. The trilobular shape is precision rolled. The ratio of outer diameter to root diameter is 1.05 to 1.08. The Torx slot meets ISO 10664. We offer stainless steel SUS304 and carbon steel SWRCH22A or 10B21. Carbon steel gets carburizing heat treatment. Surface hardness is HV 450-550. Core hardness is HV 300-400. The thread is hard enough to tap into metal or plastic. Surface finish includes black oxide, cleaning, or zinc plating. Salt spray test lasts 48-72 hours. If you want a brighter look, we can do nickel plating.
|
Parameter |
Standard / Value |
|
Driving Torque (M5 into 2mm steel) |
1.5-2.5 N·m |
|
Stripping Torque (M5) |
≥ 1.0 N·m |
|
Surface Hardness (Carbon Steel) |
HV 450-550 |
|
Torque Transfer vs. Phillips |
≥ 50% higher |
Why Our IATF Certification and Design Matter
We passed IATF 16949:2016 certification. This standard is very strong in the auto industry. It means our quality control reaches car-level standards. Payment is 30% deposit and 70% balance. We take US dollars. Big orders get discounts. The trilobular shape makes threads by forming, not cutting. There are no chips. This is good for electronics or clean rooms. In plastic, you can tighten and loosen 3-5 times. The lock force does not drop much. Our screws meet DIN 7500 and ISO 10664. You can trust them for your assembly work.
The entire product line is fully customizable.
