Shanghai Megood Metal Products Co., Ltd.

Washers

Industrial Washers Manufacturer & Supplier



Industrial flat washers, spring washers, Belleville washers, and sealing washers for OEM assemblies, industrial machinery, automotive components, and structural fastening applications. Available in standard sizes and custom dimensions, with material grades, surface finishes, and inspection requirements specified according to applicable standards or customer drawings.
We support bulk sourcing and custom washer projects requiring defined dimensions, material specifications, surface treatments, and batch inspection requirements. Buyers can submit standard references, technical drawings, or samples for specification review and quotation.


  • Tab Locking Washers

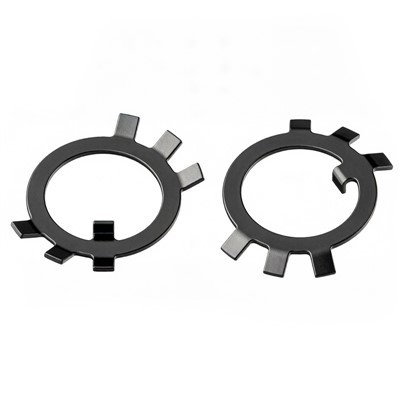

    Tab Locking Washers

    In high-vibration environments like wind turbines or railway tracks, friction-based locking is often not enough. Our Tab Locking Washers provide a mechanical fail-safe that physical prevents the nut

    Add to Inquiry
  • Bespoke Industrial Gaskets

    Bespoke Industrial Gaskets

    Are you struggling with non-standard hole patterns or irregular outlines that off-the-shelf washers can't handle? Our Bespoke Industrial Gaskets are the answer for specialized marine engineering,

    Add to Inquiry
  • Conical Spring Washers

    Conical Spring Washers

    When your application requires massive load capacity in a tight axial space, standard lock washers often fail. Our Conical Spring Washers, also known as National Disc Springs, are engineered

    Add to Inquiry
  • Commercial Flat Washers

    Commercial Flat Washers

    The secret to a long-lasting fastener connection often lies in the simplest part: the flat washer. When you tighten a bolt, the pressure is concentrated on a small area, which can deform soft

    Add to Inquiry
  • Split Spring Lock Washers

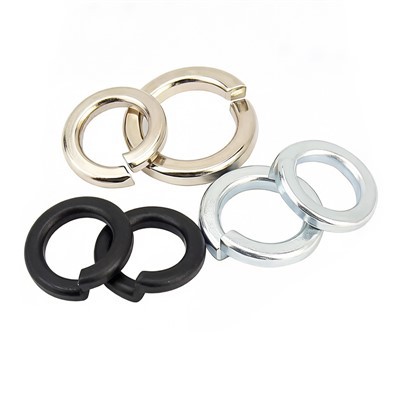

    Split Spring Lock Washers

    Vibration is the enemy of any bolted joint. If you have experienced nuts loosening on vibrating machinery, our Split Spring Lock Washers are the solution you have been looking for.

    Add to Inquiry
  • External Snap Rings

    External Snap Rings

    Our φ20mm rings made of 65MN high-carbon spring steel can withstand at least 200N of axial thrust (equivalent to a 20kg weight) without any deformation.

    Add to Inquiry
  • Custom Retaining Ring

    Custom Retaining Ring

    A Custom Retaining Ring is manufactured to your specific dimensions. This retaining ring has a custom inner diameter from 5 mm to 200 mm. The ring has a custom cross-section that matches your groove

    Add to Inquiry
  • External Tab Washer

    External Tab Washer

    An External Tab Washer has a locking tab that extends outward from the washer. This tab washer has a 16 mm nominal size with a 1.0 mm thickness. The washer has a 4 mm wide external tab that folds 90

    Add to Inquiry
  • Thick Flat Washer

    Thick Flat Washer

    A Thick Flat Washer has a 4.0 mm thickness for high load applications. This flat washer has a 20 mm inner diameter and a 45 mm outer diameter. The washer has a 2.5 mm edge thickness that resists

    Add to Inquiry
  • Countersunk Flat Washer

    Countersunk Flat Washer

    A Countersunk Flat Washer has a 90-degree counterbore that matches countersunk screws. This flat washer has a 6 mm inner diameter and a 18 mm outer diameter. The washer has a 1.6 mm thickness with a

    Add to Inquiry
  • Single Coil Spring Washer

    Single Coil Spring Washer

    A Single Coil Spring Washer has exactly one complete 360-degree turn. This spring washer has a 14 mm nominal size with a 2.0 mm material thickness. The washer has a 1.5 mm gap at the split point.

    Add to Inquiry
  • Serrated Spring Washer

    Serrated Spring Washer

    A Serrated Spring Washer has teeth on its inner or outer edge. This spring washer has a 10 mm nominal size with a 1.5 mm material thickness. The washer has 6 teeth that bite into the bearing surface.

    Add to Inquiry
First 12 Last 1/2

Product Types & Categories

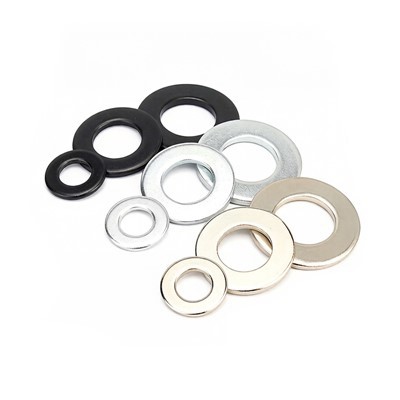

Flat Washers
Flat washers distribute fastener loads across a wider bearing surface and help protect mating components from localized contact pressure. Standard and custom configurations can be specified by inner diameter, outer diameter, thickness, material, and surface finish.

Spring & Lock Washers

Split-ring, internal-tooth, external-tooth, and wave washers are available for specified fastening and spring-loading applications. Selection depends on joint design, material, loading conditions, and the applicable product standard.

Belleville Washers

Belleville washers, also known as conical disc springs, provide a defined load-deflection response within a compact axial space. They are used in assemblies where spring force, available installation space, and changes in joint loading must be considered.

Sealing Washers

Metal and composite sealing washers are available for applications requiring a sealing interface between mating components. Material options may include copper, aluminum, PTFE-based materials, and elastomer-bonded designs, subject to confirmed manufacturing capability.





Specifications & Material Options





Washer Type

Standard References

Material Options

Key Selection Parameters

Flat Washers

ISO 7089, ISO 7090, ISO 7091, DIN 125 where specified, ASTM F436 for applicable structural washer requirements

Carbon steel, stainless steel 304/316, alloy steel, brass and copper where applicable

ID, OD, thickness, hardness, dimensional tolerances

Spring & Lock Washers

DIN 127 where specified, ASME B18.21.1 for applicable washer types

Spring steel, stainless steel, phosphor bronze where applicable

Wire or section geometry, free dimensions, material condition, load requirements

Belleville Washers

DIN 2093 for applicable disc springs

Spring steel and specified alloy grades, subject to availability

Inside/outside diameter, thickness, cone height, load-deflection requirements

Sealing Washers

DIN 7603 for applicable metal sealing washers; other standards or drawings as specified

Copper, aluminum, and confirmed composite or elastomer-bonded materials

ID, OD, thickness, material condition, media and temperature compatibility





Custom Washer Manufacturing






Custom Dimensions & Geometry

Non-standard ID, OD, thickness, profiles, stepped features, and other drawing-defined geometries can be evaluated for manufacturability. Tolerances and inspection methods should be agreed before production.


Material & Surface Treatment

Material selection can be matched to the specified mechanical, environmental, and assembly requirements. Available options and material substitutions must be confirmed before quotation, particularly where corrosion resistance, hardness, spring properties, or regulatory requirements are critical.


Secondary Operations

Depending on the product and confirmed process capability, secondary operations may include deburring, edge finishing, heat treatment, and surface finishing. Required hardness, dimensional, and surface criteria should be defined in the purchase specification.


Drawing Review & Sample Approval

For custom projects, buyers should provide:
Technical drawing with dimensions and tolerances
Material grade and applicable material standard
Required washer standard or customer specification


Surface finish and coating requirements

Mechanical properties or hardness requirements, where applicable
Annual demand, initial order quantity, and delivery schedule
Inspection plan and documentation requirements
Sample approval criteria should be agreed before mass production begins.





Manufacturing & Quality Control


Production operations utilize high-speed mechanical stamping presses ranging from 25T to 400T paired with progressive tooling to maintain dimensional repeatability across high-volume production runs.

In-Line Inspection:

Optical sorting systems check outer diameter, inner diameter, and thickness parameters at high speeds to screen out dimensional out-of-tolerance parts.

Metallurgical Verification:

Spectrometer testing verifies raw material chemical composition prior to stamping. Hardness testing (Rockwell/Vickers) confirms proper heat treatment execution on spring and high-tensile steel lots.

Traceability:

Heat numbers are tracked from raw coil stock through blanking and finishing processes, enabling generation of EN 10204 3.1 Mill Test Certificates upon request.



Industrial Applications

Heavy Machinery & Construction Equipment:

Distributing high clamping loads on excavator frames, crane pivots, and structural track assemblies subject to shock loads.

Automotive & Commercial Vehicles:

Securing chassis brackets, suspension components, and powertrain assemblies against continuous road vibration.

Tab Locking Washers

Fluid Power & Hydraulic Systems:

Providing leak-free sealing under high pressure in valve manifolds, pump flanges, and pipe couplings.

Energy & Power Generation:

Maintaining bolt preload in wind turbine flanges, transformer enclosures, and electrical switchgear.



OEM Orders, Packaging & Export Supply


simulator

MOQ & Production Lead Time: Minimum order quantity, tooling charges, sample lead time, and mass-production lead time depend on the washer design, material, finishing process, and order volume. These details should be confirmed in the quotation rather than presented as universal lead-time commitments.



Packaging Options:

Heavy-duty export cartons, wooden crates, and corrosive-resistant poly-lined bags. Custom barcoding, private labeling, and bulk bin packaging are supported for direct assembly-line integration.



Global Logistics:

Export compliance expertise managing FOB, CIF, and DDP shipments via ocean and air freight to North American and European ports.



FAQ





Q: Can you manufacture washers according to customer drawings?

A: Custom washer requirements can be evaluated against technical drawings or samples. Feasibility, tolerances, material availability, tooling requirements, and inspection criteria should be confirmed before order acceptance.

Q: Which washer standards can you supply?

A: The applicable standard depends on washer type, dimensions, material, and design. Common references include ISO 7089, ISO 7090, ISO 7091, DIN 2093, and DIN 7603 for their respective product applications. Confirm the required standard and edition when requesting a quotation.

Q: Can you provide material certificates and inspection reports?

A: Documentation depends on the ordered material, supply chain, and agreed quality requirements. Specify the required certificate type, traceability level, and inspection records in the RFQ so availability can be confirmed before ordering.

Q: How do you address hydrogen embrittlement risks in plated high-strength washers?

A: The required controls depend on the material strength, coating process, and applicable specification. Where relevant, the supplier should confirm the pretreatment, post-plating baking requirements, process records, and verification criteria before production.

Q: Which surface finishes are available for corrosion protection?

A: Potential options include zinc plating, hot-dip galvanizing, black oxide, passivation, and specified zinc-flake coatings. Suitability depends on the substrate, coating system, required thickness, operating environment, and applicable test requirements.

Q: What information is required for a custom washer quotation?

A: Provide the washer type, standard or drawing, ID, OD, thickness, tolerances, material grade, surface finish, quantity, inspection requirements, and target delivery date. A drawing or sample can help clarify geometry and acceptance criteria.



modular-1
Request a Quotation for Industrial Washers

Send your washer specifications for review and quotation. For standard products, include the applicable standard and size. For custom products, provide a drawing or sample specification so dimensions, materials, manufacturing feasibility, and inspection requirements can be evaluated.
Tel: +86-21-51805738
E-mail: liujingshco@163.com

Information to include in your RFQ:
Washer type and applicable standard or drawing number
ID × OD × thickness and required tolerances
Material grade and mechanical property requirements
Surface finish, coating requirements, and corrosion test criteria
Quantity per order and estimated annual demand
Inspection plan, certificate requirements, and batch traceability needs
Packaging instructions, destination, and target delivery date
Clear specifications help establish a common basis for quotation, sample approval, production inspection, and repeat orders.
