Special Fasteners

Custom Special Fasteners & Engineered Non-Standard Components



OEM manufacturing of precision non-standard fasteners built directly to engineering drawings. We produce custom bolts, studs, socket screws, and turned parts in metric and imperial thread profiles for demanding industrial applications across North America and Europe. Every production run is backed by raw material traceability, strict dimensional control, and full metallurgical verification.


  • Solar Panel Fixing Screws

    Solar Panel Fixing Screws

    We follow ASTM B117 for neutral salt spray testing. SUS304 with passivation gives ≥720 hours with no red rust. SUS316 with passivation gives ≥1000 hours with no red rust. Without passivation, SUS304

    Add to Inquiry
  • Unique Seat Screws

    Unique Seat Screws

    We take an M8×1.25, grade 12.9 seat screw as an example. The proof load is ≥30 kN. The failure load is ≥36 kN. We follow GB/T 11557 or FMVSS 207 for seat impact testing. Under a 20g acceleration

    Add to Inquiry
  • Automotive Door Hinge Pins

    Automotive Door Hinge Pins

    We take a φ10 mm hinge pin as an example. The double shear failure load is ≥35 kN. This force can hold a heavy SUV or MPV door. We follow GB/T 13683 or ISO 3800 for axial fatigue testing. Under a

    Add to Inquiry
  • Painted Head Sheet Metal Screws

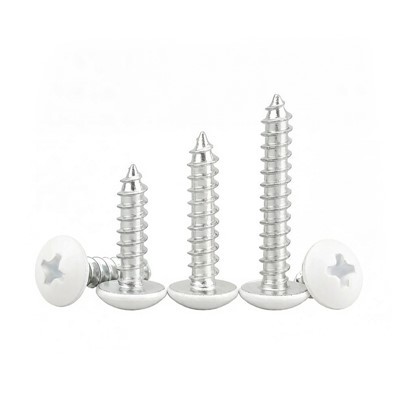

    Painted Head Sheet Metal Screws

    We follow ASTM D3359 for cross-cut paint adhesion testing. The adhesion rating is 4B or 5B. The cut edges are smooth with no peeling. We wipe with alcohol or acetone 50 times. The paint does not fade

    Add to Inquiry
  • Super Long Screws

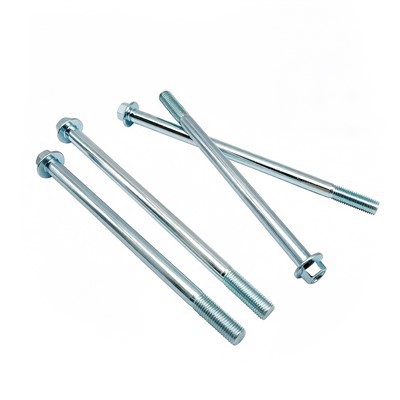

    Super Long Screws

    We take an M10×250 mm super long screw as an example. The total length straightness is ≤0.4 mm. It can easily go through a 250 mm long stacked part hole. The hole diameter is φ10.5-11 mm. The single

    Add to Inquiry

Product Types & Categories



Custom Bolts & Screws:

Hex head, heavy hex, socket head cap screws, countersunk, and shoulder bolts with customized shank lengths, thread lengths, and head dimensions.

Special Studs & Threaded Rods:

Double-end studs, continuous-thread studs, tap-end studs, and interference-fit studs in custom diameters from M3 up to M64 (or fractional equivalents).

Solar Panel Fixing Screws

Precision Non-Standard Nuts:

Coupling nuts, slotted/castle nuts, weld nuts, flange nuts, and square nuts machined with customized pitch or thickness tolerances.

Precision Turned Components:

Special pins, standoffs, spacers, and stepped shafts manufactured via multi-axis CNC turning centers to tight concentricity requirements.





Specifications & Options





Category

Specifications & Options

Standards Compliance

DIN, ISO, ANSI/ASME, BS, JIS, and custom build-to-print dimensions

Thread Profiles

UNC, UNF, UNEF, metric coarse, metric fine, ACME, trapezoidal, and custom multi-start threads

Dimensional Tolerances

Outer diameter down to ±0.005 mm; length tolerance within ±0.05 mm or as specified on drawings

Carbon & Alloy Steel

40Cr, 42CrMo (AISI 4140), 35CrMo, C45E, property classes 8.8, 10.9, 12.9, ASTM A193 B7/B7M, ASTM A320 L7

Stainless Steel

AISI 304 (A2), 316 (A4), 316L, 310S, 17-4PH; duplex and super duplex stainless steel available on request

Non-Ferrous & Special Alloys

Brass (H59/H62), aluminum (6061/7075), titanium (Grade 2/Grade 5), Inconel, Monel

Zinc Plating

Clear, yellow, and black zinc plating; RoHS-compliant options

Corrosion-Resistant Coatings

Dacromet / Geomet coatings for enhanced corrosion resistance and reduced hydrogen embrittlement risk

Hot-Dip Galvanizing

HDG for outdoor and marine applications

Stainless Steel Finishing

Passivation and electropolishing

Other Surface Treatments

Black oxide / blackodizing; PTFE / Xylan coatings for chemical resistance and controlled torque-tension performance

Heat Treatment

Quenching and tempering, carburizing, induction hardening, and stress relieving, according to applicable specifications

Applicable Heat-Treatment Standards

ISO 898-1 and relevant ASTM standards, as applicable to the product and material



Custom Manufacturing Capabilities


Machining Equipment:

CNC sliding head lathes (Swiss-type), multi-axis CNC turning centers, automatic high-speed cold heading machines (for high-volume standard/semi-custom runs), thread rolling machines, and vertical milling centers.

Secondary Operations:

Centerless grinding, broaching, cross-drilling (for safety wire holes), thread locking patch application (Nylon patch/pellet), and customized head stamping/laser marking (part number, heat number, grade).

Production Flexibility:

Prototype sample runs, pilot batches, and scheduled blanket orders with flexible release schedules to support recurring OEM inventory needs.



Unique Seat Screws



Manufacturing & Quality Control

Inspection & Testing Equipment:
Optical sorting and non-contact vision measuring systems (100% dimensional screening capability for critical lots).
Digital thread gauges, ring gauges, and plug gauges calibrated regularly.
Desktop metallurgical microscope and spectral analyzers for raw material chemical composition verification.

Rockwell and Vickers hardness testers.
Salt spray test chambers (up to 1,000+ hours corrosion resistance testing).
Tensile testing machines for proof load, breaking load, and elongation verification.

Traceability & Documentation:
Raw Material Mill Test Reports (MTRs) archived for every production batch.
First Article Inspection Reports (FAIR / ISIR) provided prior to mass production.
Inspection reports supplied with every shipment.
EN 10204 3.1 certificates available upon request.



Typical Applications



Heavy Industrial Machinery & Mining Equipment

1

>>

Commercial Vehicles, Truck Chassis, and Axle Assemblies

2

>>

Industrial Valves, Pumps, and Pressure Vessels

3

>>

Wind Energy Turbines and Power Transmission Towers

4

>>

Automation Robotics and Heavy-Duty Structural Framing

5

>>

Marine Engineering and Offshore Oil & Gas Infrastructure

6

OEM Orders & Export Supply



Packaging Standards:

Heavy-duty export-grade corrugated cartons, moisture-barrier poly bags, corrosion-inhibiting VCI paper lining, fumigation-free wooden crates or plastic pallets, and barcoded individual packaging per customer specifications.

Logistics & Incoterms:

Flexible shipping terms including FOB, CIF, DDP, and EXW via air freight, ocean freight, or express courier for urgent sample consignments.

Engineering Support:

Direct technical communication channel with our internal product engineers to review drawings, evaluate manufacturability (DFM), and optimize material selection before production tooling.



FAQ





Q: What is your minimum order quantity (MOQ) for custom non-standard fasteners?

A: MOQ depends on the raw material, fastener diameter, and length. For standard thread sizes using common alloy or stainless steel grades, minimum runs start at 500 to 1,000 pieces per specification. For custom CNC-turned parts or specialized alloys, we evaluate based on raw material bar stock yields and tooling setup requirements.

Q: What file formats do you accept for engineering drawings and custom RFQs?

A: We accept 2D drawings in PDF or CAD formats (.dwg, .dxf) and 3D models in .step, .iges, or .sldprt formats. Drawings must clearly indicate critical dimensions, tolerances, thread specifications, material grades, and designated surface finishes or heat treatment requirements.

Q: Can you provide material test reports and dimensional inspection reports with shipments?

A: Yes. Every shipment includes a dimensional inspection report. Raw Material Mill Test Reports (MTRs) showing chemical and mechanical properties are supplied, and EN 10204 3.1 certificates are available for all traceable production lots.

Q: How do you prevent hydrogen embrittlement during plating processes?

A: For high-tensile fasteners (Grade 10.9, 12.9, or alloy steels above 32HRC), we enforce mandatory baking processes (hydrogen relief baking) immediately after electroplating (such as zinc plating) in accordance with ASTM B850 standards, or we recommend alternative coatings like Dacromet/Geomet to eliminate hydrogen embrittlement risks entirely.

Q: What is the typical lead time for custom fastener sampling and bulk production?

A: Standard custom samples typically take 10 to 15 business days depending on tooling requirements. Mass production bulk orders generally range from 25 to 35 days after engineering drawing approval and order confirmation. Urgent project schedules can be evaluated on a case-by-case basis.

Q: Do you offer custom head marking or laser engraving for part traceability?

A: Yes. We can cold-forge or laser-engrave manufacturer logos, property classes (e.g., 10.9, A4-80), heat numbers, or custom part numbers directly onto fastener heads for full traceability in critical structural applications.



modular-1
Request a Quote

Provide your technical specifications to receive a direct engineering evaluation and commercial quotation.
Please include the following details in your inquiry for a rapid response:
Engineering Drawing or PDF Specification Sheet (detailing dimensions, thread pitch, and tolerances)
Material Grade (e.g., AISI 316, 42CrMo, Grade 10.9)
Surface Treatment / Coating Requirement
Required Quantity per Batch / Annual Forecast
Target Delivery Timeline & Destination Port
