Turning

Custom CNC Turning Services & Precision Turned Components



OEM manufacturing of precision-machined rotational components built directly to engineering drawings. We produce custom shafts, bushings, fittings, flanges, and complex turned-milled parts in metric and imperial dimensions for industrial applications across North America and Europe. Every production run is backed by multi-axis CNC machining infrastructure, strict dimensional verification, and full material traceability.


  • Slotted Shaft

    Slotted Shaft

    We take a φ10 mm, 40Cr material, HRC 35 slotted shaft as an example. The double shear failure load is ≥25 kN. This force is enough for excavator links or hydraulic cylinder ears. The outer diameter

    Add to Inquiry
  • Drilled Shaft

    Drilled Shaft

    We take a φ10×50 mm drilled shaft with a φ3 mm hole as an example. We use a φ3 mm cotter pin. The axial pull-out force is ≥1.5 kN. We use a φ3×30 mm spring pin. The axial pull-out force is ≥2.5 kN.

    Add to Inquiry
  • Shaft Spacer Sleeve

    Shaft Spacer Sleeve

    We take a φ20×φ16×20 mm (OD×ID×length) spacer sleeve as an example. The outer diameter φ20 h7 is 20.000 to 19.985 mm. The inner diameter φ16 H8 is 16.000 to 16.027 mm. The length tolerance is ±0.1

    Add to Inquiry
  • Internal and External Threaded Copper Nut

    Internal and External Threaded Copper Nut

    We take an M8 outer / M6 inner brass nut as an example. The outer thread tightening torque is 15 N·m. The inner thread bolt torque is 10 N·m. The nut body does not deform or crack. Brass has an

    Add to Inquiry
  • Grooved Clevis Pins

    Grooved Clevis Pins

    Standard screws are designed for tension, but when your application requires a part to handle pure shear forces or act as a precision pivot, you need our Grooved Clevis Pins. These are threadless,

    Add to Inquiry

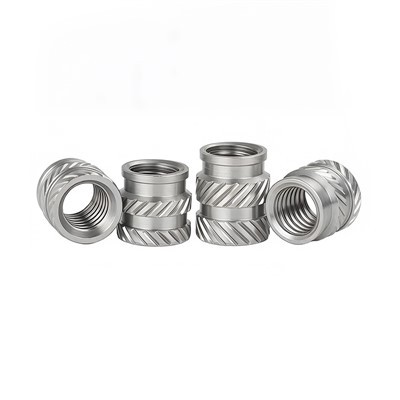

  • Hot Melt Embossed Nut

    Hot Melt Embossed Nut

    We take an M5 brass hot melt nut embedded in PA66 plastic (10 mm hole depth) as an example. We follow UL 746C for testing. The axial pull-out force is ≥900 N. This is about 50% higher than the

    Add to Inquiry

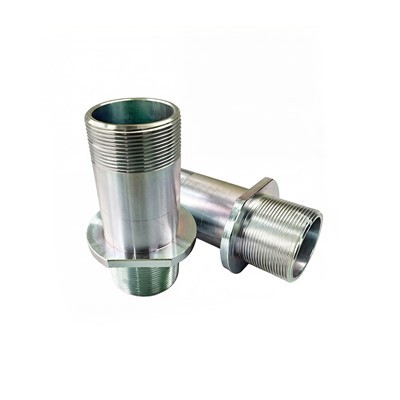

  • Turned Precision Parts

    Turned Precision Parts

    Our machining precision can reach ±0.01 mm. Diameter tolerance of ±0.01 mm is our normal level. ±0.005 mm is our precision level. Concentricity is ≤0.03 mm. Surface roughness of Ra≤1.6 μm is normal.

    Add to Inquiry

Product Types & Categories



Custom Shafts & Spindles:

Stepped shafts, drive shafts, motor spindles, and rotor shafts machined with strict concentricity and runout control.

Custom Bushings & Sleeves:

Plain bushings, guide sleeves, and bearing housings manufactured in ferrous and non-ferrous alloys.

Slotted Shaft

Machined Flanges & Adapters:

Threaded, socket-weld, and blind connection flanges machined to custom pitch diameters and sealing face requirements.

Complex Turned-Milled Parts:

Multi-axis components featuring cross-holes, milled flats, keyways, and eccentric turning in a single setup.



Manufacturing & Quality Control



Inspection & Testing Equipment:

Coordinate Measuring Machines (CMM) for complex 3D profile and geometric tolerance verification.

Optical non-contact vision measuring systems for rapid dimensional screening.

Digital micrometer sets, bore gauges, thread plug/ring gauges, and surface roughness testers calibrated regularly.

Desktop spectral analyzers and Rockwell/Vickers hardness testers.

Traceability & Documentation:

Raw Material Mill Test Reports (MTRs) archived for every production batch.
First Article Inspection Reports (FAIR / ISIR) provided prior to mass production.
Dimensional inspection sheets supplied with every commercial shipment.
EN 10204 3.1 certificates available upon request.

Shaft Spacer Sleeve





Specifications & Options





Category

Specifications & Options

Dimensional Tolerances

Outer and inner diameters down to ±0.005 mm; length and depth tolerances within ±0.02 mm or as specified on the engineering drawing

Surface Roughness

Ra 0.2–1.6 µm, depending on material, geometry, and finishing process

Stainless Steel

AISI 303, 304 (A2), 316 (A4), 316L, 17-4PH, 410, 420

Carbon & Alloy Steel

1045, 4140 (42CrMo), 8620, 20CrMoTi, 12L14 (free-cutting steel)

Aluminum Alloys

6061-T6, 7075-T6, 5052, 2024

Non-Ferrous & Special Alloys

Brass (C36000, H59, H62), bronze (C93200, CuSn12), copper, titanium (Grade 5)

Anodizing

Type II sulfuric anodizing; Type III hardcoat; clear or colored finishes

Electroless Nickel Plating (ENP)

Electroless nickel coating for specified coating thickness and surface requirements

Zinc Plating

Clear, yellow, or black zinc plating; RoHS-compliant options

Stainless Steel Finishing

Passivation and electropolishing

Black Oxide

Black oxide surface treatment

Carburizing & Heat Treatment

Carburizing and other heat-treatment options, with hardness requirements specified in HRC or HB according to the engineering drawing



Custom Manufacturing Capabilities


Machining Equipment:

CNC sliding head lathes (Swiss-type for small-diameter high-precision parts up to dia 32 mm), multi-axis CNC turning centers with live tooling, and horizontal/vertical CNC lathes capable of turning diameters up to dia 500 mm and lengths up to 1500 mm.

Secondary Operations:

Centerless grinding, deep-hole drilling, internal/external thread whirling, broaching, and deburring.

Production Flexibility:

Prototype sampling, pilot production runs, and scheduled blanket orders to support recurring OEM inventory requirements.



Grooved Clevis Pins



Typical Applications

Engineered for rigorous mechanical assemblies requiring high rotational stability, dimensional accuracy, and wear resistance:
Automotive Powertrain Components & Steering Shafts
Industrial Automation Robotics & Servo Motor Shafts
Hydraulic & Pneumatic Valve Spools, Pistons, and Manifold Connectors
Fluid Pump Rotors, Impeller Shafts, and Bearing Sleeves
Medical Device Housings and Diagnostic Equipment Hardware
Electrical Switchgear Pins and Power Transmission Connectors



OEM Orders & Export Supply



Packaging Standards:

Heavy-duty export-grade corrugated cartons, individual vacuum-sealed poly bags, moisture-barrier VCI film lining, anti-collision foam protection, and fumigation-free wooden crates for heavy parts.

Logistics & Incoterms:

Flexible shipping terms including FOB, CIF, DDP, and EXW via air freight, ocean freight, or express courier for urgent sample dispatches.

Engineering Support:

Direct technical communication with our internal application engineers to review 2D/3D drawings, evaluate DFM (Design for Manufacturability), and optimize production tolerances before tooling setup.





FAQ





Q: What file formats do you accept for custom turning RFQs?

A: A: We accept 2D drawings in PDF or CAD formats (.dwg, .dxf) and 3D models in .step, .iges, .sldprt, or .x_t formats. Drawings must clearly indicate critical fits, geometric tolerances (GD&T), surface roughness, material grades, and heat treatment requirements.

Q: What is your minimum order quantity (MOQ) for custom turned parts?

A: MOQ depends on raw material stock size and setup complexity. For standard CNC turning runs, minimum orders typically start at 100 to 500 pieces per part number. For complex multi-axis Swiss-turned components or specialized alloy materials, we evaluate based on bar stock yield and setup requirements.

Q: Can you maintain tight geometric tolerances such as concentricity and cylindricity?

A: Yes. Utilizing high-rigidity CNC turning centers and Swiss-type lathes, we routinely maintain outer diameter tolerances down to +/-0.005 mm, concentricity within 0.01 mm, and surface finishes down to Ra 0.4 um depending on the geometry and material.

Q: Do you provide material test reports and inspection documents with delivery?

A: Yes. Every batch includes a detailed dimensional inspection report. Raw Material Mill Test Reports (MTRs) showing chemical composition and mechanical properties are archived and provided upon request, along with EN 10204 3.1 certificates.

Q: What is the typical lead time for custom samples and mass production?

A: Standard custom prototypes or initial samples typically require 10 to 15 business days depending on programming and tooling setup. Mass production orders generally range from 25 to 35 days following engineering drawing approval and order confirmation.

Q: How do you protect precision machined surfaces during international transit?

A: All turned parts are cleaned, deburred, and coated with an anti-rust oil film where applicable. They are then individually packed in sealed polyethylene bags or VCI anti-corrosion paper, separated in partitioned heavy-duty cartons, and secured in export-grade wooden crates to prevent transit damage.



modular-1
Request a Quote

Provide your technical specifications to receive a direct engineering evaluation and commercial quotation.
Please include the following details in your inquiry for a rapid response:
2D Drawing / 3D CAD Model (detailing critical dimensions, tolerances, and thread specifications)
Material Grade & Hardness Requirement
Surface Treatment / Coating Specification
Required Batch Quantity & Annual Forecast
Target Delivery Timeline & Destination Port
