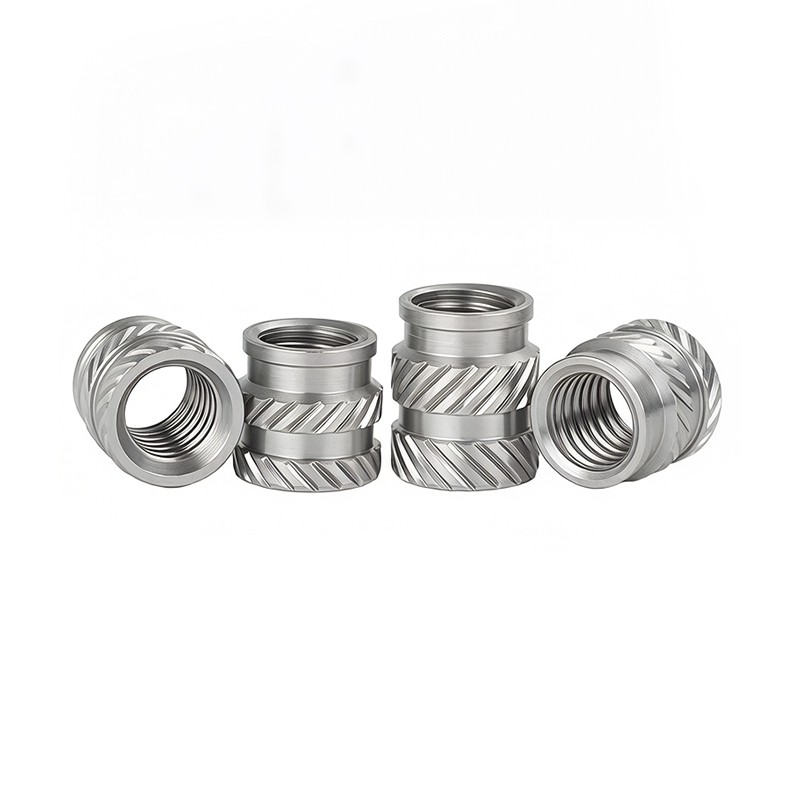

Hot Melt Embossed Nut
We take an M5 brass hot melt nut embedded in PA66 plastic (10 mm hole depth) as an example. We follow UL 746C for testing. The axial pull-out force is ≥900 N. This is about 50% higher than the general type. The torque-out force is ≥5.0 N·m. The outer wall has cross or spiral knurling.
Use High Heat Plastics with Our Hot Melt Embossed Nut
Do you use high melting point engineering plastics? Like PA66 nylon 66, PPS, or PEEK. Regular hot melt nuts do not get hot enough. They cannot melt into these plastics. Our High Temp Hot Melt Embossed Nut is made for these high heat plastics. Its installation temperature is 300-400°C. That is much higher than the general type at 200-300°C. We are a Shanghai factory. We have supplied fasteners for 20 years.
Check Our Pull-out Data and Knurling Depth
We take an M5 brass hot melt nut embedded in PA66 plastic (10 mm hole depth) as an example. We follow UL 746C for testing. The axial pull-out force is ≥900 N. This is about 50% higher than the general type. The torque-out force is ≥5.0 N·m. The outer wall has cross or spiral knurling. The knurl depth is 0.3 to 0.5 mm. That is deeper than the general type. The bite force is stronger. Thread precision is 6H. This nut works for PA66, PA6, PPS, PEEK, PBT, and high temp PC. We offer stainless steel SUS304 and brass H59. The stainless steel type is for hard engineering plastics like PEEK and PPS. The brass type is for PA66 and PC. The product comes clean with no oil. This ensures a good melt bond at high temperatures. Both stainless steel and brass have good corrosion resistance.
|
Parameter |
Standard / Value |
|
Pull-out Force (M5 in PA66) |
≥ 900 N (UL 746C) |
|
Torque-out Force (M5 in PA66) |
≥ 5.0 N·m |
|
Knurling Depth |
0.3 - 0.5 mm |
|
Installation Temperature |
300-400°C |
Why Our R&D and Sample Policy Support You
We have our own R&D team. You can share your special needs. We will help solve your technical problems. Free samples are ready for stock items. We support OEM and ODM orders. Just send us your drawing or sample. Cold headed parts start at 50,000 pieces. Machined parts depend on the size. Mass production takes 2-3 weeks for standard parts. Custom products take 4 weeks. Repeat orders are even faster. You install with heat or ultrasound. The nut can handle 20 or more bolt tightening cycles. It will not come loose. This is much better than plastic self-tapping threads. Payment is 30% deposit and 70% balance. We take US dollars. We pack your order well. We have done this for 20 years.
The entire product line is fully customizable.
