Unique Seat Screws
We take an M8×1.25, grade 12.9 seat screw as an example. The proof load is ≥30 kN. The failure load is ≥36 kN. We follow GB/T 11557 or FMVSS 207 for seat impact testing. Under a 20g acceleration shock (about 2.5 times the seat weight), the screw does not break or come loose.
Stay Safe in Car Seats with Our Unique Seat Screws

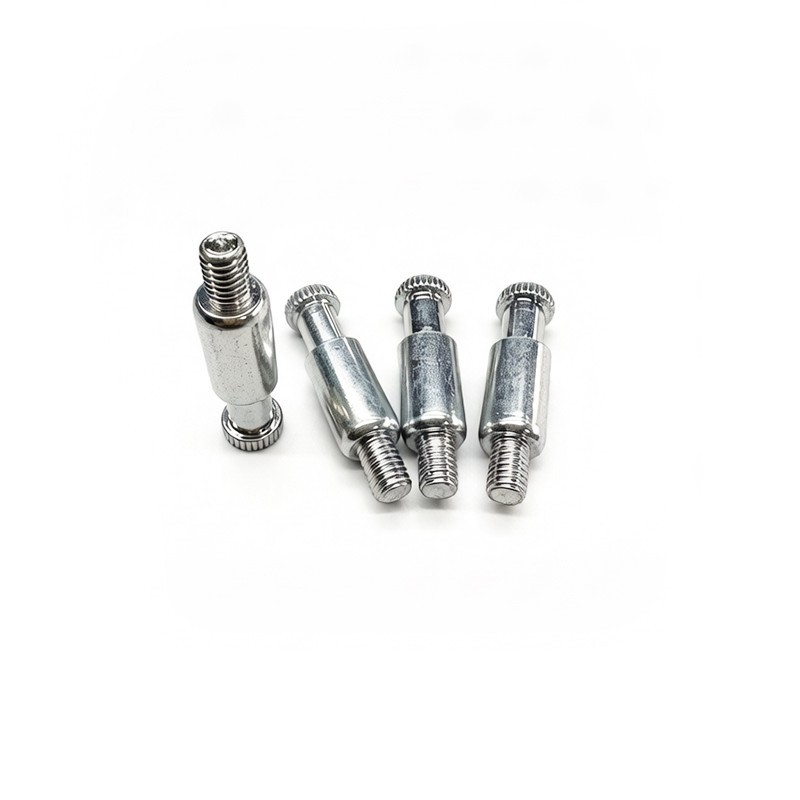

Seat rails, recliners, and lift mechanisms are safety critical areas. Regular screws cannot handle the shock. Our Unique Seat Screws are made for car seats. The head shape is special. It can be D-shaped, T-shaped, flanged, or off-center. This helps with shock resistance, loosening prevention, and tight spaces. We are a Shanghai factory. We have supplied fasteners for 20 years.
Check Our Load Data and Strength Grades
We take an M8×1.25, grade 12.9 seat screw as an example. The proof load is ≥30 kN. The failure load is ≥36 kN. We follow GB/T 11557 or FMVSS 207 for seat impact testing. Under a 20g acceleration shock (about 2.5 times the seat weight), the screw does not break or come loose. The material is SCM435, SCM440, or ML40Cr. The strength grade is 10.9 or 12.9. Grade 10.9 has tensile strength ≥1000 MPa and yield ≥900 MPa. Grade 12.9 has tensile ≥1200 MPa and yield ≥1080 MPa. Thread precision is 6g. We can make full thread or partial thread. The shank can have a step, a snap ring groove, or knurling. A D-shaped head fits a D-shaped slot on the rail. This stops the screw from spinning during single side tightening. A T-shaped head hides inside a thin wall part. It gives a smooth surface. A flange head increases the bearing area. It stops indentation of aluminum or plastic seat structures.
|
Parameter |
Standard / Value |
|
Proof Load (M8, 12.9 grade) |
≥ 30 kN |
|
Failure Load (M8, 12.9 grade) |
≥ 36 kN |
|
Tensile Strength (12.9 grade) |
≥ 1200 MPa |
|
Residual Clamp Force (with locker) |
≥ 85% (ISO 16130) |
Why Our Custom Options and Traceability Help You

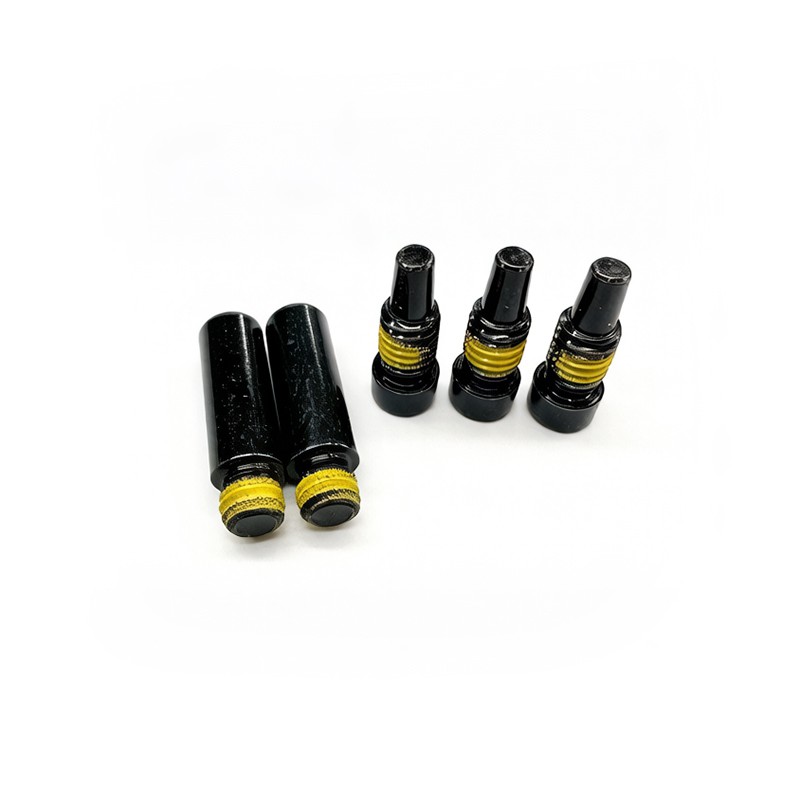

We support custom orders. The diameter is M5 to M14. The length is 15 to 120 mm. Head height, flange diameter, and thread length can follow your drawings. We can do laser marking. Batch numbers, torque grades, and supplier codes can be marked. This meets IATF 16949 traceability for the auto industry. Surface finish includes zinc plating, Dacromet, or zinc-nickel alloy. Zinc plating gives 72-96 hours of salt spray. Dacromet gives 500+ hours. Zinc-nickel gives 720+ hours. We suggest using a flange lock nut or pre-applied thread locker (like Loctite 243). Cold headed parts start at 50,000 pieces. Machined parts depend on the size. Free samples are ready for stock items. Custom sample development takes about one month. We pack your order well. We have done this for 20 years.
The entire product line is fully customizable.
