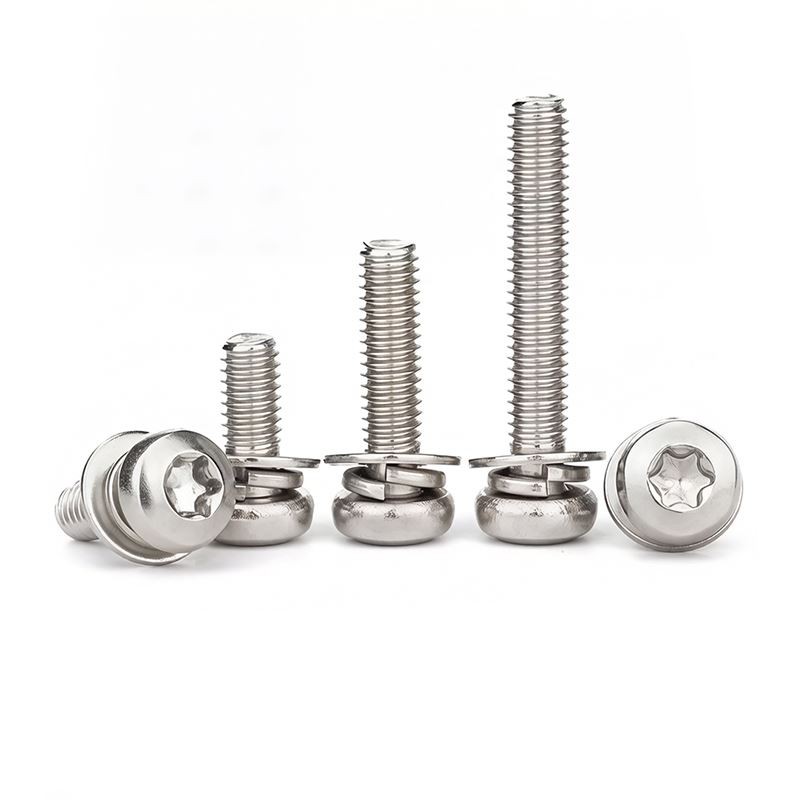

Torch Slot Combination Screws
We take an M6 Torx (T30) as an example. The maximum transfer torque is ≥25 N·m. This is much higher than a Phillips slot (PH3) at ≤12 N·m. We follow DIN 34800 for repeated tightening. After 100 tightening and loosening cycles, the Torx slot still keeps 90% of its drive ability.
Stop Tool Slipping with Our Torx Slot Screws
Did your Phillips slot ever get damaged? The tool slips and the screw is ruined. Our Torch Slot Combination Screws use a Torx drive. The contact area is larger. The stress on the corners is smaller. The tool will not slip out easily. We are a Shanghai factory. We have made fasteners for 20 years.
Check Our Torque Data and Strength Grades
We take an M6 Torx (T30) as an example. The maximum transfer torque is ≥25 N·m. This is much higher than a Phillips slot (PH3) at ≤12 N·m. We follow DIN 34800 for repeated tightening. After 100 tightening and loosening cycles, the Torx slot still keeps 90% of its drive ability. The size range is M3 to M8. Carbon steel can reach 10.9 or 12.9 ultra high strength. Tensile strength is ≥1200 MPa. Yield strength is ≥1080 MPa. Thread precision is 6g. We use a thread rolling process. The thread surface is smooth with no burrs. You can choose a spring washer or a flat washer. We pre-assemble them at the factory. We offer stainless steel SUS304 or 316 and carbon steel 10B21 or SCM435. Carbon steel comes in 10.9 or 12.9 grade. Surface finish includes black oxide, cleaning, zinc plating, or nickel/zinc-nickel plating. Zinc plating gives 48-72 hours of salt spray test.
|
Parameter |
Standard / Value |
|
Max Transfer Torque (T30) |
≥ 25 N·m |
|
Drive Retention After 100 Cycles |
≥ 90% (DIN 34800) |
|
Tensile Strength (12.9 grade) |
≥ 1200 MPa |
|
Residual Clamp Force (with spring washer) |
≥ 78% (ISO 16130) |
Why Our Follow-up Service Helps Your Business
Our factory is in Shanghai Jiading. We have 2300 square meters and 20 workers. We have our own R&D team. We passed IATF 16949:2016 certification. We have order trackers. They follow every step from your first price inquiry to delivery at your warehouse. If your customer has assembly problems, we have a person to talk and solve it. Warranty depends on the industry. We can talk about the details. Payment is 30% deposit and 70% balance. We take US dollars. Big orders get discounts.
The entire product line is fully customizable.
