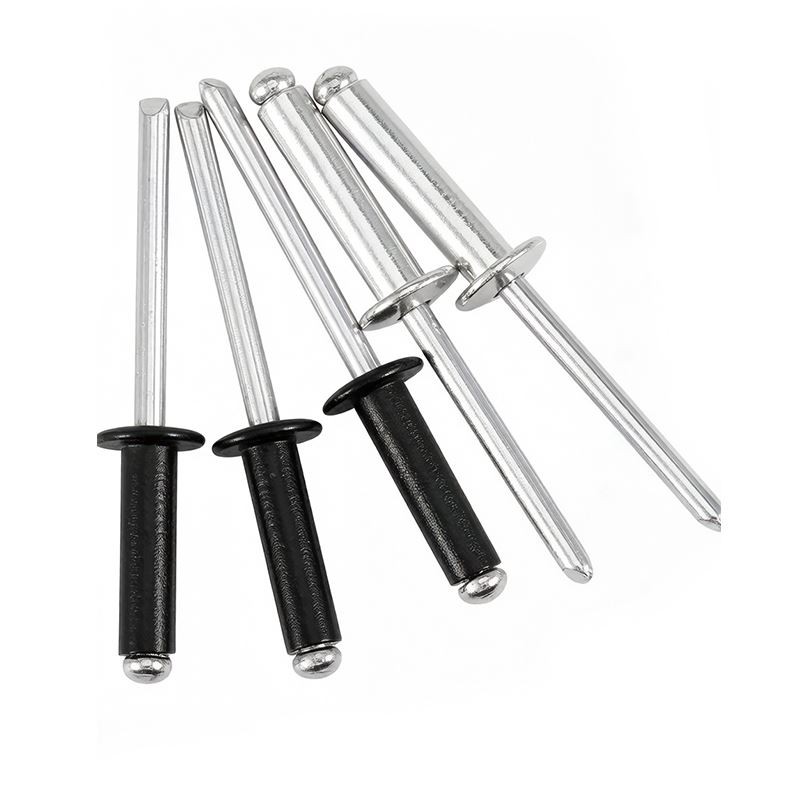

Blind Rivets
We take a φ5 mm stainless steel/stainless steel blind rivet as an example. It joins two 2 mm thick aluminum sheets. We follow ISO 14589 for testing. The ultimate shear force is ≥2.5 kN. The ultimate pull-out force is ≥3.0 kN. The mandrel break force is about 4-5 kN.
Join from One Side with Our Blind Rivets
Do you need to rivet from only one side? The other side is out of reach. Our Blind Rivets solve this problem. You use a rivet gun to pull the mandrel. The mandrel breaks. The rivet body expands. This makes a permanent joint. We are a Shanghai factory. We have supplied fasteners for 20 years.
Check Our Shear Data and Material Combinations
We take a φ5 mm stainless steel/stainless steel blind rivet as an example. It joins two 2 mm thick aluminum sheets. We follow ISO 14589 for testing. The ultimate shear force is ≥2.5 kN. The ultimate pull-out force is ≥3.0 kN. The mandrel break force is about 4-5 kN. This ensures the rivet expands fully before breaking. The size range is M2.4 to M16. One rivet fits a range of sheet thicknesses. For φ5 mm rivets, the grip range is 3.0 to 6.0 mm. We offer four material mixes. Stainless steel/stainless steel: body and mandrel are both stainless steel. This gives the best corrosion resistance and strength. Steel/steel: body and mandrel are carbon steel. This costs less and has good strength. Aluminum/steel: aluminum body with a steel mandrel. This is light and resists corrosion. But shear force is lower. The rivet body wall is precision cold headed. The wall thickness is even. The mandrel has a ring lock groove. The break force is well controlled. Surface finish includes cleaning, zinc plating, or black oxide. Zinc plating gives 48-72 hours of salt spray.
|
Parameter |
Standard / Value |
|
Shear Force (φ5mm SS/SS) |
≥ 2.5 kN (ISO 14589) |
|
Pull-out Force (φ5mm SS/SS) |
≥ 3.0 kN |
|
Mandrel Break Force |
4-5 kN |
|
Grip Range (φ5mm) |
3.0 - 6.0 mm |
Why Our Follow-up Service and Simple Use Matter
We have order trackers. They follow every step from your first price inquiry to delivery at your warehouse. If your customer has assembly problems, we have a person to talk and solve it. Warranty depends on the industry. We have many product types. We can talk about the details. Installation is simple. You use a manual or air rivet gun. You work from one side. The riveting takes 1-2 seconds per rivet. Use stainless steel/stainless steel for outdoor or wet areas. Use steel/steel for indoor structure joints. Use aluminum/steel for light weight jobs with low shear needs.
The entire product line is fully customizable.
