Special Rivet
We take a φ5×12 mm semi-hollow rivet as an example. The hollow depth is 6 mm. The wall thickness is 0.8 mm. The joint strength after riveting is ≥1.5 kN. This works for luggage pull rods or hinge joints. We take a φ4×10 mm spin rivet as an example. The axial pull-out force after riveting is ≥800 N.
Make Moving Joints with Our Special Rivet

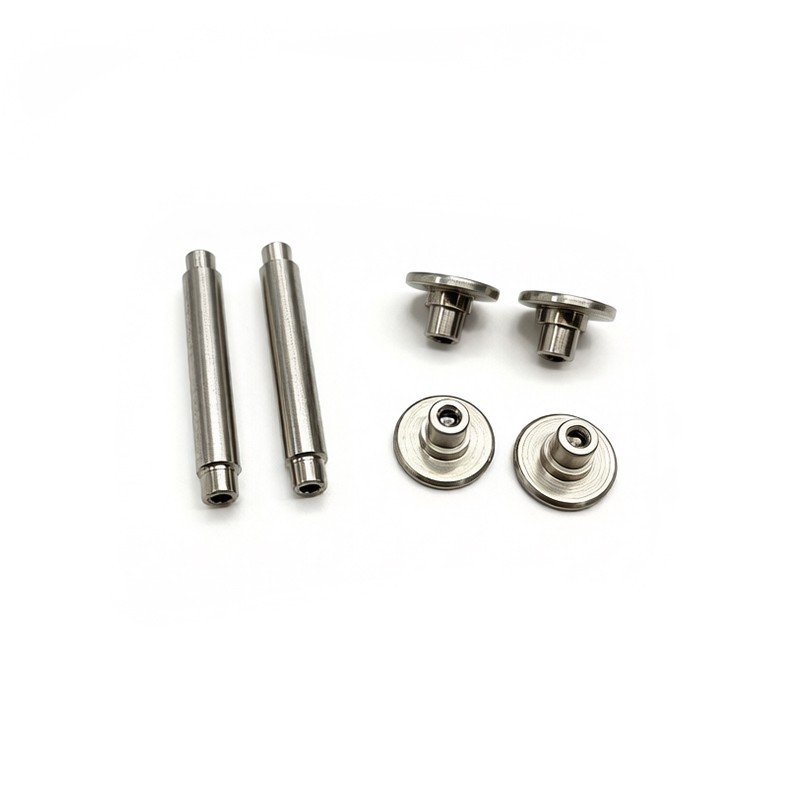

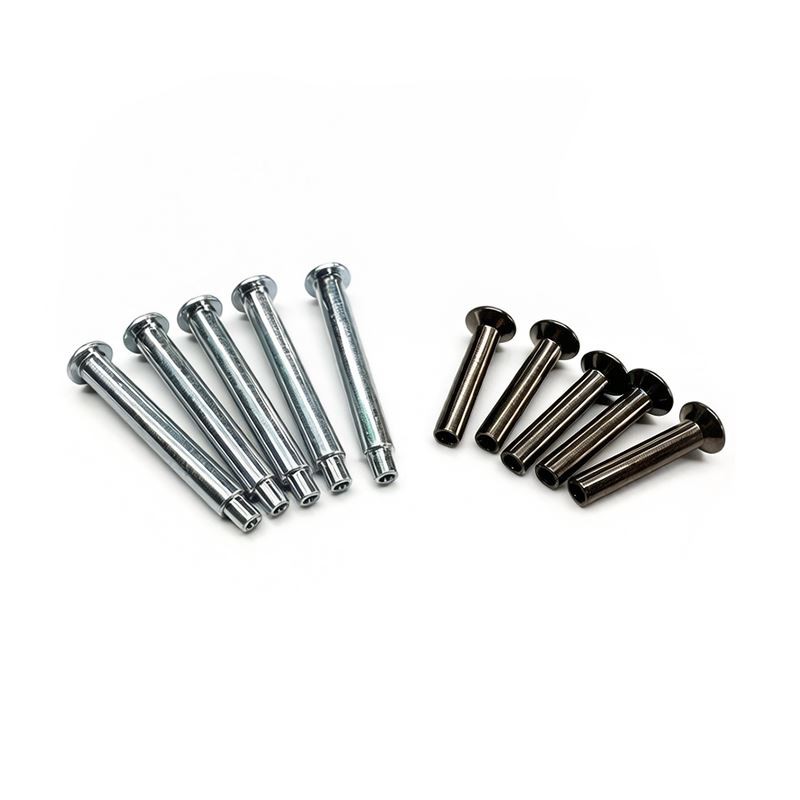

Do your pull rods, handles, or hinges need rivets? You also need the parts to move after riveting. Our Special Rivets include semi-hollow rivets and spin rivets. They make a permanent joint. They also let the joined parts spin or rotate. We are a Shanghai factory. We have worked for 20 years.
Check Our Strength Data and Rotation Torque
We take a φ5×12 mm semi-hollow rivet as an example. The hollow depth is 6 mm. The wall thickness is 0.8 mm. The joint strength after riveting is ≥1.5 kN. This works for luggage pull rods or hinge joints. We take a φ4×10 mm spin rivet as an example. The axial pull-out force after riveting is ≥800 N. The radial rotation torque is ≤0.5 N·m. The joint is strong but spins easily. The diameter range is 2 mm to 10 mm. The length range is 5 mm to 50 mm. The shank diameter tolerance is ±0.05 mm. Head shapes can be round, flat, countersunk, or any shape you need. Hollow types are semi-hollow, full hollow, or solid. We offer stainless steel SUS304 and carbon steel SWRCH18A or SWRCH35K. The spin rivet shank is precision ground. Surface roughness is Ra≤0.8 μm. This ensures smooth spinning. Surface finish includes zinc plating, black nickel, or nickel plating. Black nickel gives a black metallic look for high end luggage parts. Nickel plating gives a bright silver look with good corrosion resistance.
|
Parameter |
Standard / Value |
|
Joint Strength (φ5mm semi-hollow) |
≥ 1.5 kN |
|
Pull-out Force (φ4mm spin rivet) |
≥ 800 N |
|
Rotation Torque (φ4mm spin rivet) |
≤ 0.5 N·m |
|
Shank Diameter Tolerance |
± 0.05 mm |
Why Our MOQ and Custom Support Help You
Cold headed parts start at 50,000 pieces. Machined parts depend on the size. Free samples are ready for stock items. We support OEM and ODM orders. Just send us your drawing or sample. Custom sample development takes about one month. Semi-hollow rivets work with air or hydraulic spin riveters. Spin rivets work with radial spin riveting. After riveting, you get a smooth ball or cone shape. Typical uses are luggage wheel holders, handle mounts, luggage hinges, and lock riveting. We pack your order well. We have done this for 20 years.
The entire product line is fully customizable.
