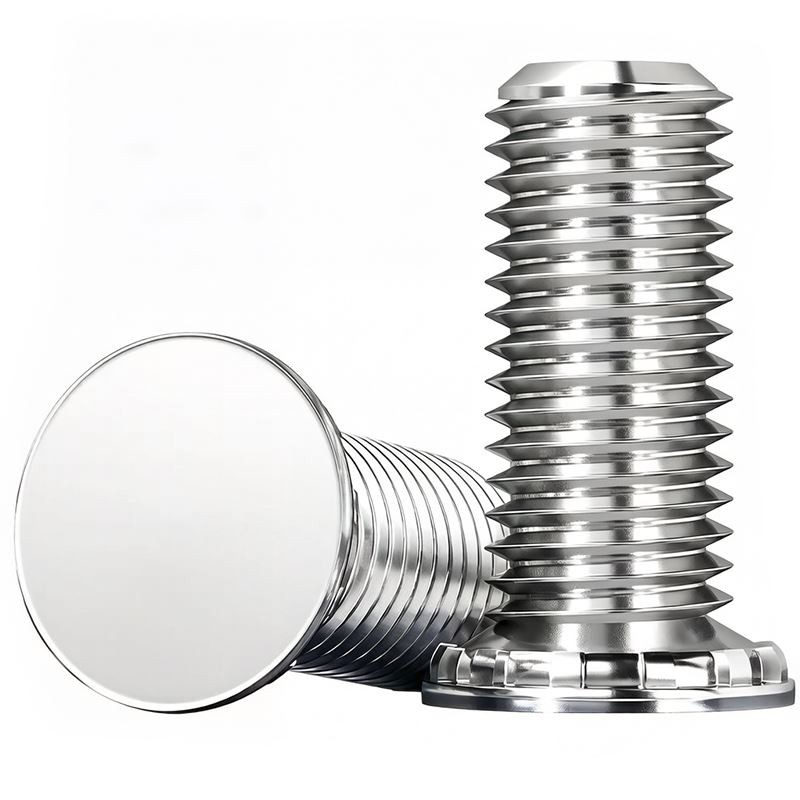

Press-fit Screws
We take an M5 carbon steel press fit screw as an example. We press it into a 1.5 mm thick SPCC steel sheet. The needed press force is about 4-6 kN. After installation, the push-out force is ≥250 N. The torque-out force is ≥3.5 N·m. This follows the PEM Engineering Guide.
Add Threads to Thin Sheets with Our Press Fit Screws
Do you need a permanent outer thread on a thin sheet? Welding a stud may bend the sheet. Threading is not thick enough. Our Press Fit Screws solve this problem. They use pressure to sink into the thin metal sheet. After installation, the sheet has a permanent outer thread. The thread will not spin. We are a Shanghai factory. We have made fasteners for 20 years.
Check Our Push-out Data and Installation Force
We take an M5 carbon steel press fit screw as an example. We press it into a 1.5 mm thick SPCC steel sheet. The needed press force is about 4-6 kN. After installation, the push-out force is ≥250 N. The torque-out force is ≥3.5 N·m. This follows the PEM Engineering Guide. The size range is M2 to M10. The clinching part has serrations or a hex anti-rotation shape. The tooth depth is 0.2 to 0.4 mm. The hardness after heat treatment is HV 350-450. The screw thread is precision 6g. The concentricity between thread and serrations is ≤0.1 mm. We offer stainless steel SUS303 or SUS304 and carbon steel C1215 or 10B21. It works for low carbon steel, aluminum, and copper sheets with hardness ≤HRB 70. It does not work for stainless steel or high hardness sheets. The thinnest sheet is 0.8 mm. The thickest is 3.0 mm.
|
Parameter |
Standard / Value |
|
Press Force Needed (M5) |
4-6 kN |
|
Push-out Force After Install |
≥ 250 N (PEM Guide) |
|
Torque-out Force (M5) |
≥ 3.5 N·m |
|
Serration Tooth Depth |
0.2 - 0.4 mm |
Why Our Factory and Delivery Work for You
Our factory is in Shanghai Jiading. We have 2300 square meters and 20 workers. We started in 2006. That is 20 years now. Mass production takes 2-3 weeks for standard parts. Custom products take 4 weeks. Repeat orders are even faster. Payment is 30% deposit and 70% balance. We take US dollars. Big orders get discounts. Installation is simple. You use a standard press or punch press with a flat punch. The pressure must be even and straight. After installation, the screw face is flush with the sheet or slightly raised. The carbon steel version has outer thread strength at grade 8.8 or 10.9. It works with standard hex nuts. Surface finish includes cleaning, zinc plating, or nickel plating. Nickel plating gives a bright look for electronics. We pack your order well. We have done this for 20 years.
The entire product line is fully customizable.
