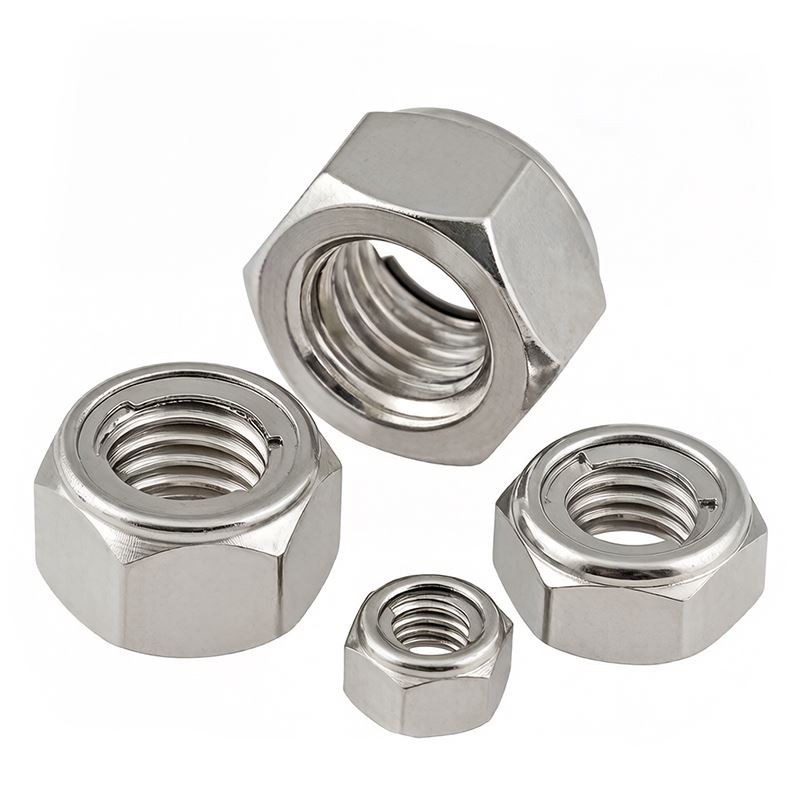

Metal Lock Nut
We follow ISO 16130 for transverse vibration testing. Take an M10 metal lock nut as an example. After 4000 vibration cycles, the residual clamp force stays at ≥75%. The locking performance is close to a nylon lock nut. But the temperature range is much wider.
Handle High Heat with Our Metal Lock Nut
Do you need a lock nut for high temperature areas? A nylon ring gets soft above 120°C. Our Metal Lock Nut has an all-metal body. No nylon. No plastic. It uses a deformed top slot or an oval pinch to make a lock. High heat does not hurt it. We are a Shanghai factory. We have made fasteners for 20 years.
Check Our Vibration Data and Temperature Range
We follow ISO 16130 for transverse vibration testing. Take an M10 metal lock nut as an example. After 4000 vibration cycles, the residual clamp force stays at ≥75%. The locking performance is close to a nylon lock nut. But the temperature range is much wider. The size range is M3 to M36. The lock shape uses a top slot or an oval pinch. The deformation is controlled to 0.05-0.15 mm. Thread precision is 6H. This meets DIN 980. We offer stainless steel SUS304, SUS316, or SUS630 and carbon steel SWRCH35K, SCM435, or 45#. Carbon steel grade is 8, 10, or 12 per ISO 898-2. The all-metal body works from -50°C to +300°C. There is no plastic to age or soften. Special materials like SUS630 can handle +500°C. Surface finish includes cleaning, zinc plating, or Dacromet. Dacromet gives 500+ hours of salt spray.
|
Parameter |
Standard / Value |
|
Residual Clamp Force (M10) |
≥ 75% after 4000 cycles (ISO 16130) |
|
Temperature Range |
-50°C to +300°C (overall) |
|
Deformation Amount |
0.05 - 0.15 mm |
|
Size Coverage |
M3 to M36 |
Why Our MOQ and Reuse Guidelines Help You
Cold headed parts start at 50,000 pieces. Machined parts depend on the size. Free samples are ready for stock items. Mass production takes 2-3 weeks for standard parts. Custom products take 4 weeks. Repeat orders are even faster. We suggest you do not reuse this nut more than 3 to 5 times. The effective torque will drop after each use. The first installation torque is about 150-200% of a standard nut. Because this is a metal-to-metal interference lock, it may wear the bolt thread a little. Use it with high strength bolts (grade 10.9 or higher). Our nuts meet DIN 980, ISO 7042, and GB/T 6185. You can trust them for high heat and high vibration areas.
The entire product line is fully customizable.
