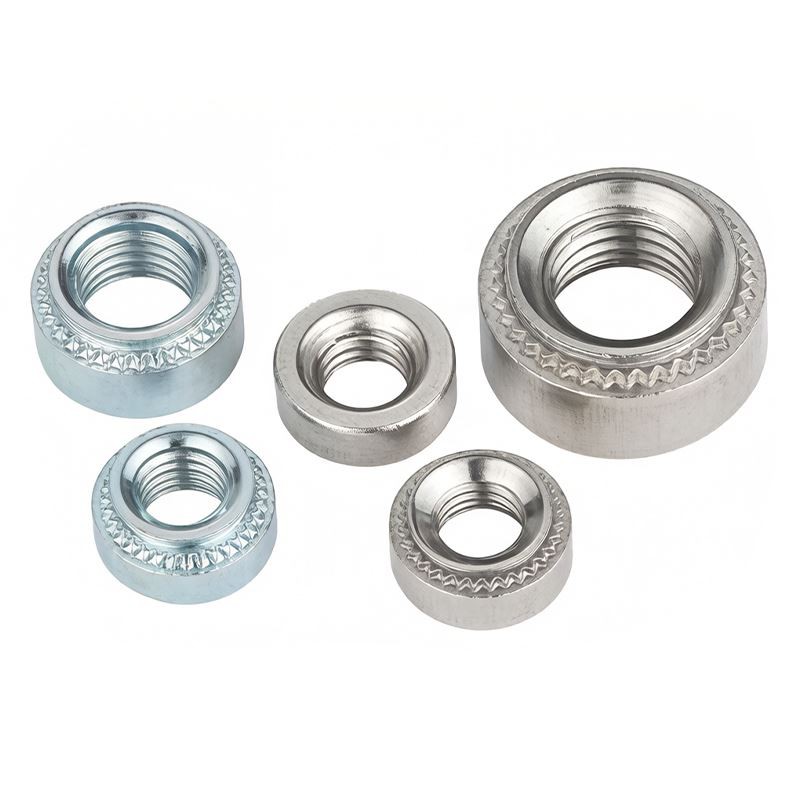

Multi Grip Rivet Nut
We take an M5 stainless steel rivet nut as an example. We press it into a 1.5 mm thick SPCC steel sheet. The needed press force is about 3-5 kN. After installation, the push-out force is ≥200 N. The torque-out force is ≥2.5 N·m. This follows the PEM Engineering Guide.
Make Threads in Thin Sheets with Our Rivet Nut
Is your sheet metal too thin for threading? Welding a nut may cause bending. Our Multi Grip Rivet Nut solves this problem. It uses pressure to sink into the thin metal sheet. The serrations or knurls cut into the sheet. This makes a permanent inner thread. We are a Shanghai factory. We have worked for 20 years.
Check Our Push-out Data and Installation Force
We take an M5 stainless steel rivet nut as an example. We press it into a 1.5 mm thick SPCC steel sheet. The needed press force is about 3-5 kN. After installation, the push-out force is ≥200 N. The torque-out force is ≥2.5 N·m. This follows the PEM Engineering Guide. The size range is M2 to M12. The clinching part has serrations or knurls. The tooth height is 0.2 to 0.4 mm. The hardness after heat treatment is HV 350-450. This ensures smooth pressing into the sheet. Thread precision is 6H. We offer stainless steel SUS304 and carbon steel C1215 or 10B21. It works for low carbon steel, aluminum, and copper sheets with hardness ≤HRB 70. It does not work for stainless steel or high hardness sheets. The thinnest sheet is 0.8 mm. The thickest is 3.0 mm.
|
Parameter |
Standard / Value |
|
Press Force Needed (M5) |
3-5 kN |
|
Push-out Force After Install |
≥ 200 N (PEM Guide) |
|
Torque-out Force (M5) |
≥ 2.5 N·m |
|
Serration Tooth Height |
0.2 - 0.4 mm |
Why Our Testing and Certification Support You
We have salt spray testers, 2D projectors, hardness testers, and optical sorters. We check every batch. We accept third-party inspections. We can do a 100% full check before packing. We passed IATF 16949:2016 certification. Payment is 30% deposit and 70% balance. We take US dollars. Big orders get discounts. Installation is simple. You use a standard press or punch press with a flat punch. The pressure must be even and straight. After installation, the nut face is flush with the sheet. The carbon steel version has inner thread strength at grade 8 or 10. This meets ISO 898-2. It works with high strength bolts.
The entire product line is fully customizable.
